ORIF Patellar fracture (슬개골 골절)



ORIF Patellar fracture

-적응증 : Patellar fracture 슬개골 골절











Type C - Atricular patella fracture with associated distruption of extensior mechanism













K-wire 3호 + wire driver

roll wire 18g

reduction clamp 大, 中

wire holder















1.spinal anesthetic techniques.

position : supine





2.midline incision with respect to the underlying structures of the extensor mechanism

used by blade #20 mess

approach : metz scs + Regular fcp

retractor : cusing retractor, 2-geur retractor



3.hematoma removal : rongeur

irrigated to remove intra-articualr bony debris





4.Vertically oridented patella fracture reduction

: reduction clamp 大



5.Compression fixation of the aticular surface combinde with a tensionband

tension band using K-wires #3 using a wire driver , two double-ended #3 K-wire are placed at the fracture site

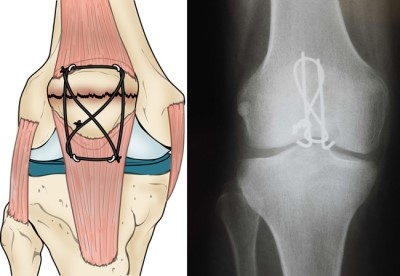

with Figure of eight tension band wire can be used







6.Drain 400 M insertion

suture: 1/0 vicryl -> 2/0 vicryl
