NS / Cervical Laminoplasty (경추 척추 후궁 성형술) 수술 과정

Laminoplasty c-spine

multi-level cervical myelopathy

1. 척추후궁성형술

2. 추궁판성형술









velocity drill - 3mm cutting, diamond, fissure, 6mm cutting bur

rotating punch - 주로 2mm

micro pituatary 3ea, punch 1ea
Tripod

bipolar sharp / blunt



micro setting 필요없음

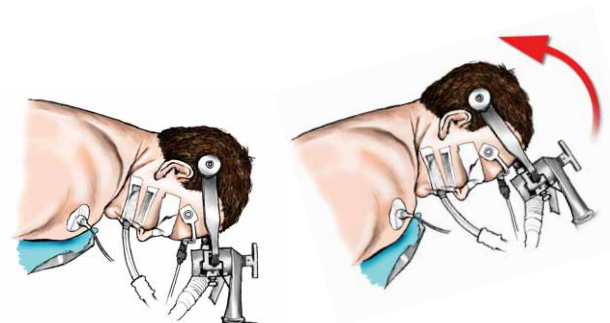

1.position

prone - head secured in a Mayfield three-pin head-holder



2. midline posterior exposure

->20mess incision

->assist: tooth 2ea

->bipolar bleeding control 하고 난 후 bovie로 lateral dissection, subperiostal plane을 따라 muscle expose

->retractor : mastoid, 깊어지면 beckmann

->4*4 x-ray gz 사용













3.Open Side Trough Preparation

lamina를 junction 따라 burr -  dorsal cortex - cancellous bone : 3mm cutting burr & 3mm diamond burr

Hemostasis of the bone surfaces : bone wax (ostene) 의 no.4 ele



2mm sliding punch, 직각 punch, rotating punch 주로 사용.

가끔 5mm 직각 punch

->ostene 의 no.4



























4.Keeping the Door Open

주로 open door plate 사용 (파란색)

->bender 는 kelly로 사용

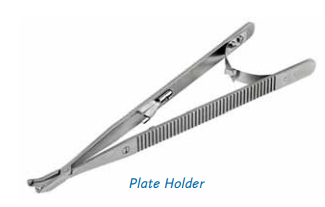

->plate holder

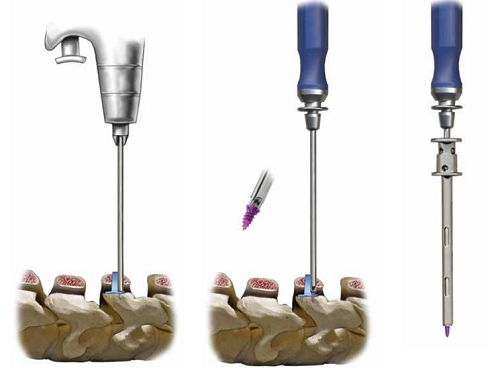

5.Drill and Screw Insertion

hand drill or fissure bur -> screw 2.6* 5mm











6.close

irrigation

hemovac 400m

1/0 vicryl -> 2/0 j vicryl -> skin stapler

















<image 출처>

http://www.mtortho.com/public/CENTERPIECE.pdf
