ORIF Foot (synthes VA Foot)



ORIF Foot









1.Set

OS Minor set



2.부속

OS Hand set

OS Hand fracture set

Synthes collibri set

*회사 Set

synthes VA Foot



3.준비물품

11,15mess

bovie

bipolar

c-arm vinyl

glove

4*4,4*8gz

stockinet

30cc sry

spoid 2ea







1.incision&approach

11mess incision 후 tenotomy scs로 dissection

senn vein retraction



2.temporary reduction

reduction clamp와 k-wire로 temporary reduction



3.place the plate on the bone

*compression system technique

plate를 bone위에 적용 한 후

->1.6mm Insert compression wires

->compression forcep을 fracture gap을 줄인다.

*2.4/2.7mm Variable angle locking technique

2.4mm variagle angle locking screw - 1.8mm drill bit

2.7mm variagle angle locking screw - 2.0mm drill bit

Diameter	Name	Drill bit
2.7 mm	Cortex / LHS	2.0
2.4 mm	Cortex / LHS	1.8
2.0 mm	Cortex / LHS	1.5
1.5 mm	Cortex	1.1

2.0mm variable angle locking guide

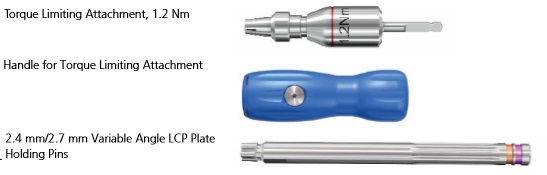

torque limiting attachment + handle + stardrive screwdriver연결하여

screw를 final tighten variable angle locking screw를 tighten 하게 한다.





3.close

drain : JP 100M

suture : 3/0 vicryl, 4/0 nylon

short leg splint
