External Fixation

External Fixation

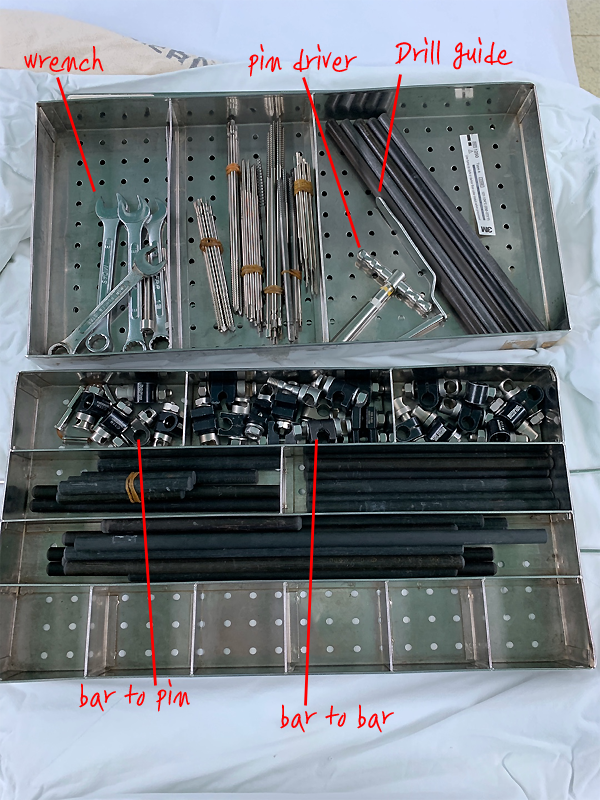

Equipment

1.Half Threaded pin (3/4/5/6mm)

2.Carbon fiber rods

3.bar(rod) to pin clamps

4.bar(rod) to bar clamps

5.wrench

6.T handle

7.drill guide

8.drill bit











1.Position

supine position

일반적인 TKRA Drape 동일, 3M은 안함.

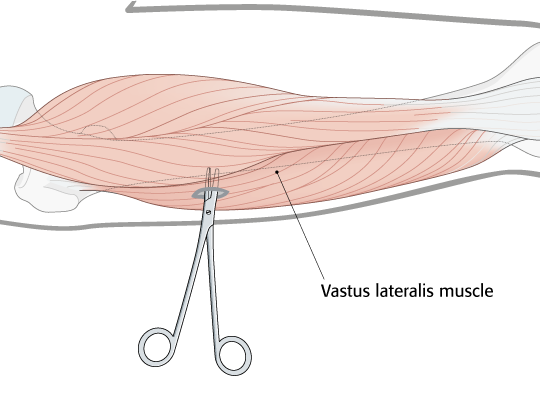

2.Incision & Aproach

#11mess incision 넣고 st.mosquito로 opening

ret) senn-vein

bleeding control : bovie









3.drill & Half pin insertion

3.8 drill bit + drill guide 로 큰망치로 고정 후 drilling

→half pin insertion + T-Handle  + drill sleeve

diameter 3/4/5/6 : tibia 5

length 150/180mm













5.Frame construction & Reduction and fixation

bar/rod (400/350/300mm) 연결

bar to bar connector - bar와 bar 사이 연결

pin to bar connector - bar와 pin 사이 연결

wrench로 frame을 조립한다.











6.close

skin suture: 3/0 nylon

dressing : Y-gauze, 솜, EB













https://www2.aofoundation.org/wps/portal/surgerymobile?showPage=redfix&bone=Tibia&segment=Proximal&basicTechnique=Basic%20technique:%20Modular%20external%20fixation&backLink=both

Proximal tibia - Reduction & Fixation - AO Surgery Reference
